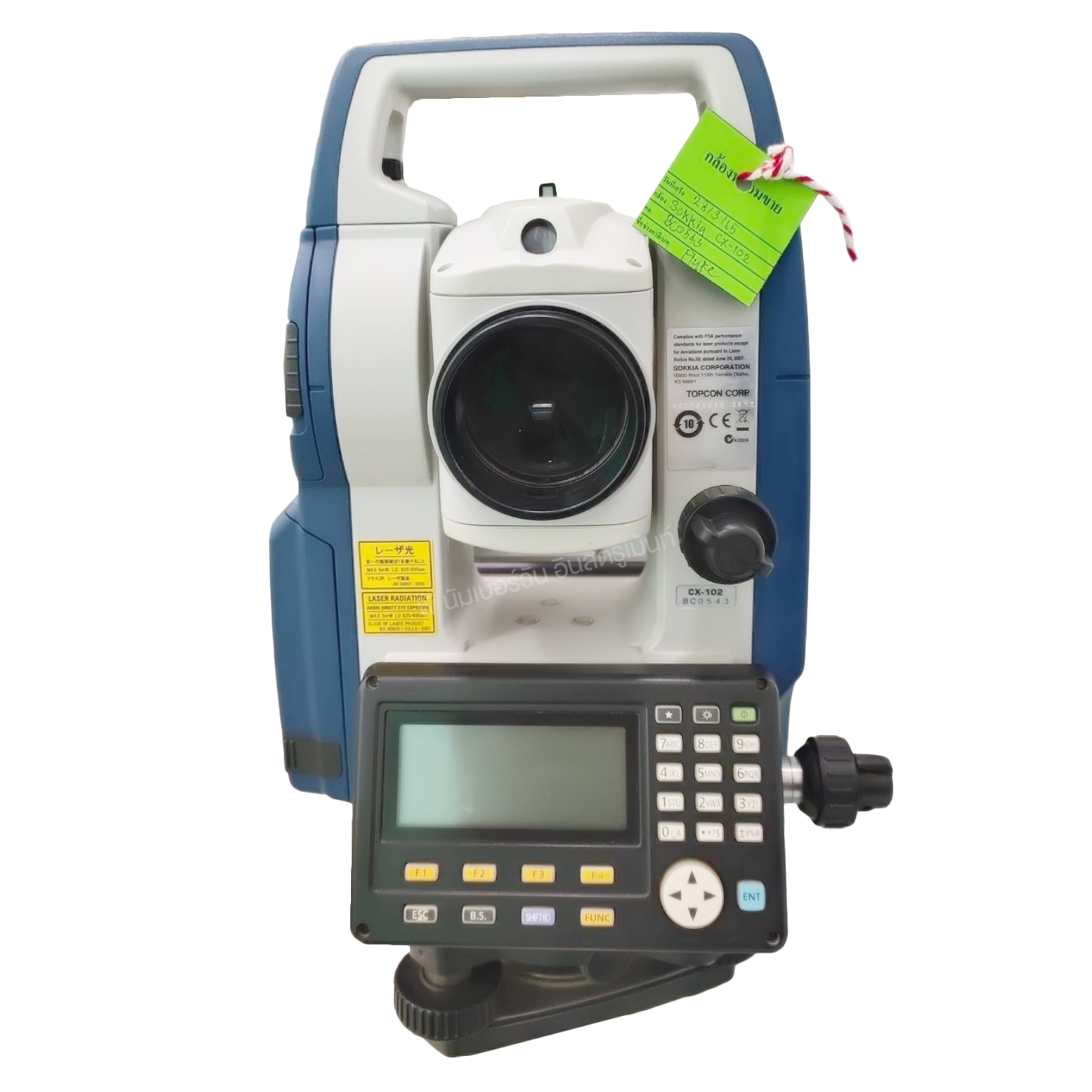

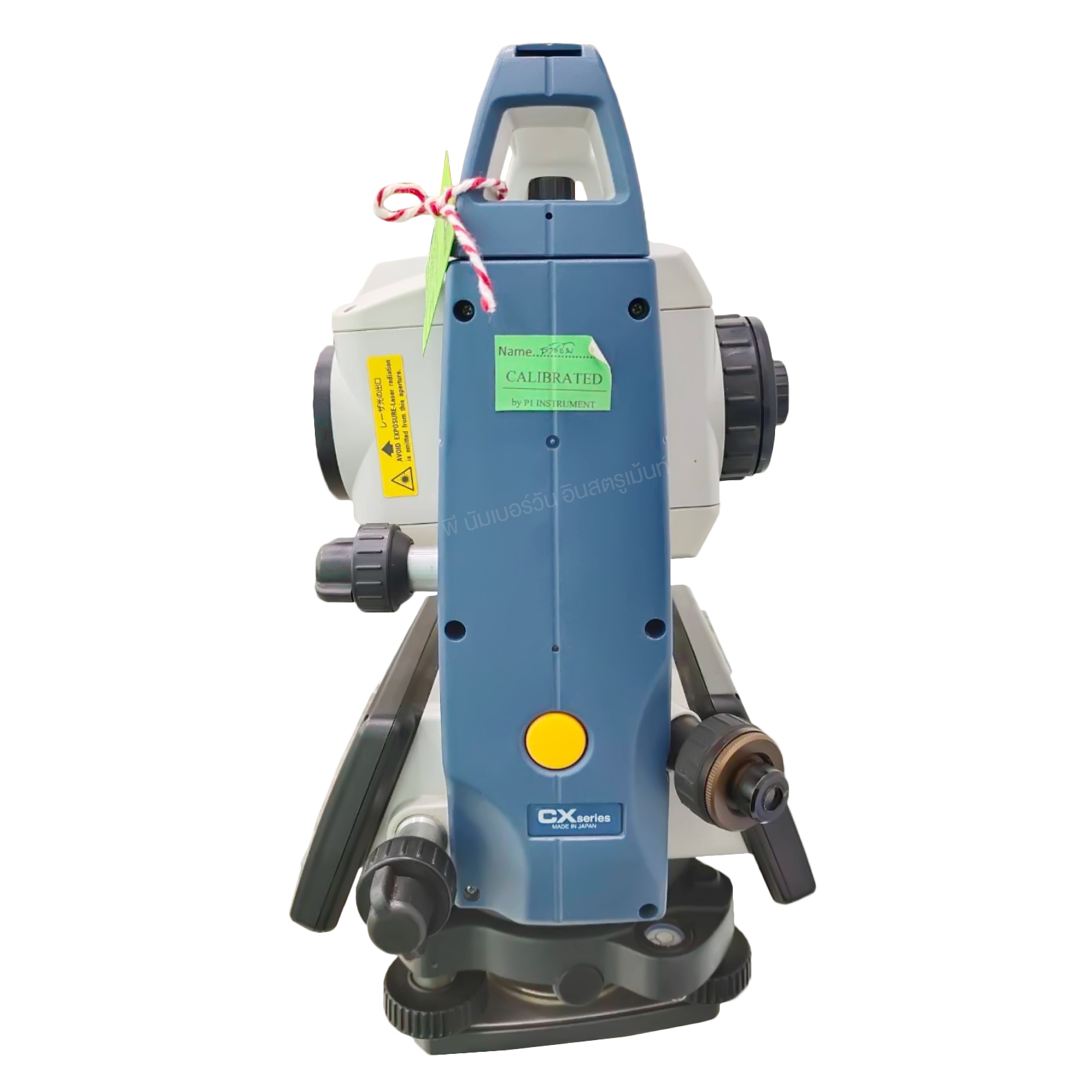

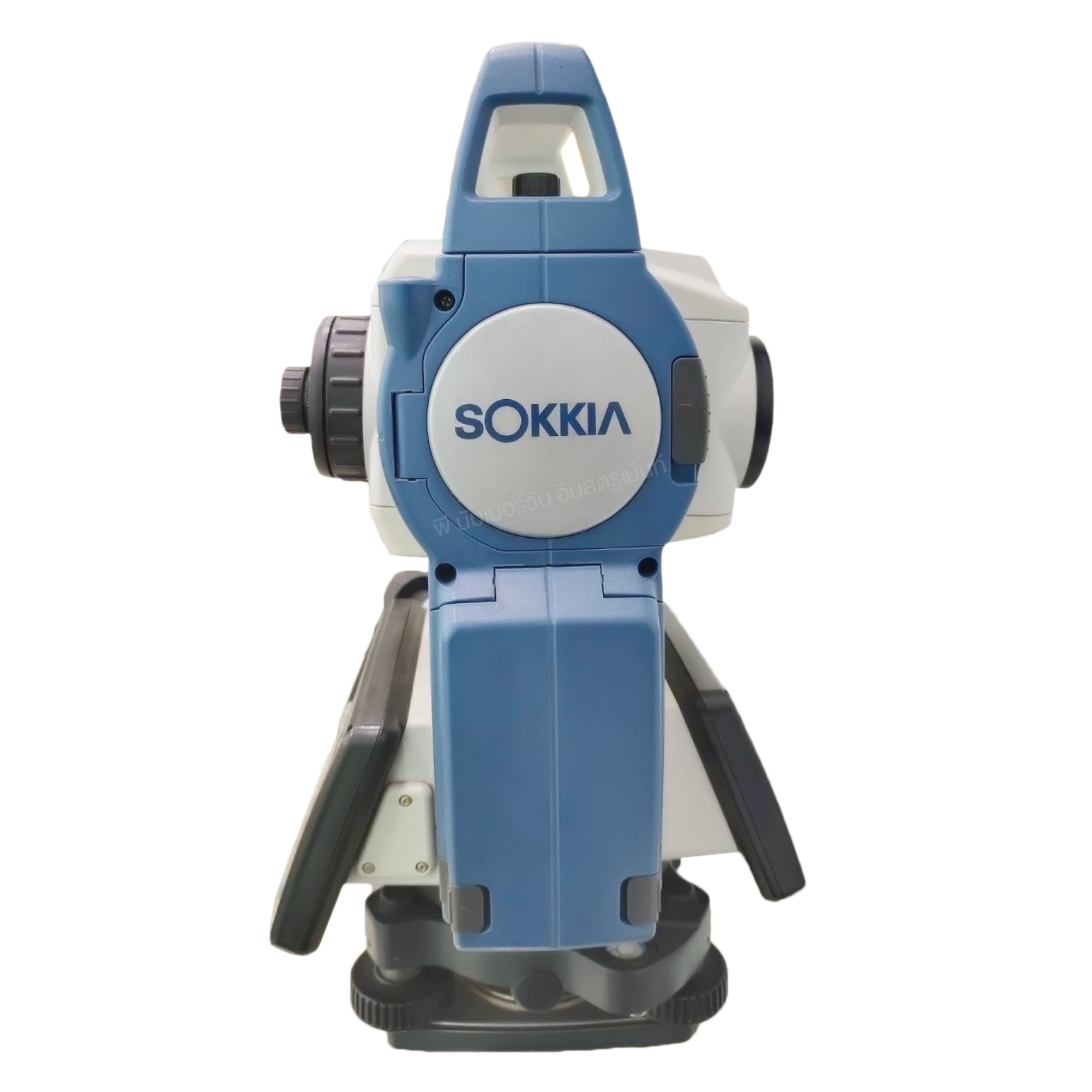

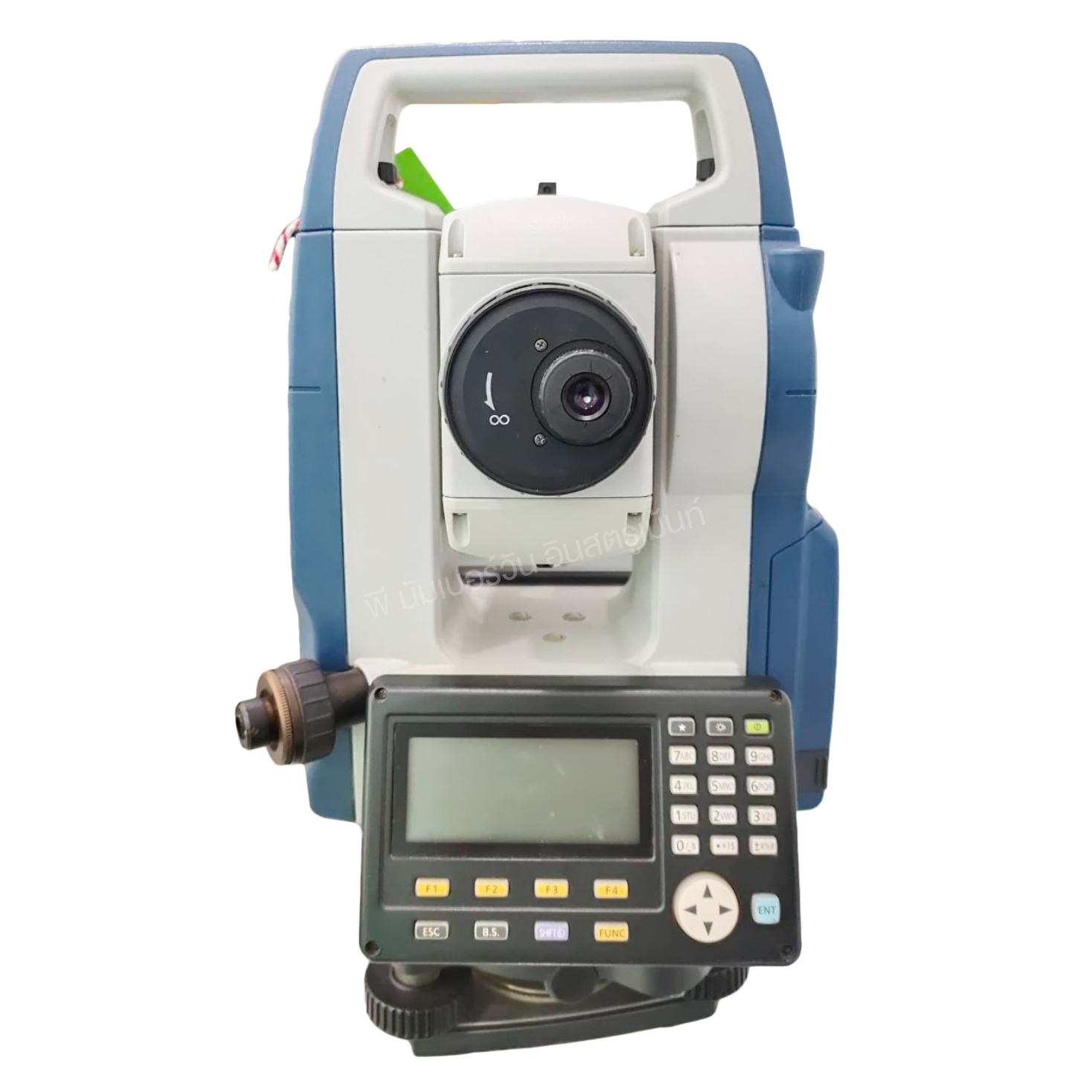

กล้อง TOTAL STATION SOKKIA CX-102 (มือสอง)

Telescope
Length:                             171mm
Aperture:                          45mm (EDM:48mm)
Magnification:                     30X
Image:                               Erect
Resolving power:                 2.5"
Field of view:                      1°30'
Minimum focus:                   1.3m
Focussing screw:                 1 speed
Reticle illumination:              5 brightness levels

Tilt angle compensation
Type:                                   Liquid 2-axis tilt sensor
Minimum display:                    1"
Range of compensation:          ±6' (±0.1111 gon)
Automatic compensator:          ON (V & H/V)/OFF (selectable)
Compensation constant:          Can be changed

Distance Measurement
Measuring method:             Coaxial phase shift measuring system
Signal source:                    Red laser diode 690nm
Distance unit:                    m/ft/inch (selectable)

Guide Light
Light source:                     LED (red 626 nm/green 524 nm)
Distance:                          1.3 to 150m
Visible range:                    Right and Left/Upward and Downward: ± 4°(7m/100m)
Resolving power at center area (width):  4' (about 0.12m/100m)
Brightness:                       3 levels (bright/normal/dim)

Internal memory
Capacity: 10,000 measurement points
External memory: USB flash memory (up to 8 GB)

Data transfer
Data input/output:             Asynchronous serial, RS232C compatible
USB:                               USB Revision 2.0 (FS), Host (Type A), Only a
                                     USB memory device is compatible.

Power Supply
Power source:                  Rechargeable Li-ion battery BDC70
Battery state indicator:      4 levels
Auto power-off:               5 levels (5/10/15/30 min/Not set) (selectable)
External power source:     6.7 to12V
Charging time at 25 °C:     about 5.5 hours (using CDC68/68A)
